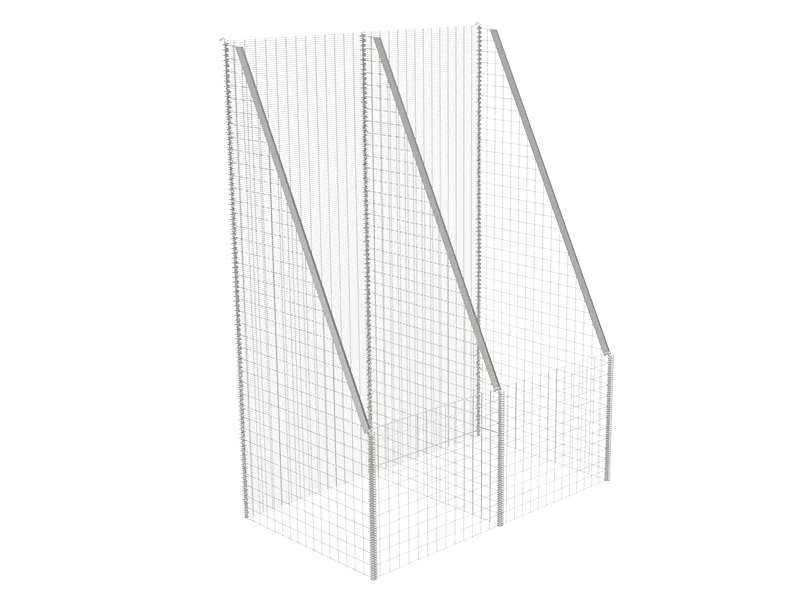

Defensive barrier pro unit overview
Structures & Specifications
- Anti-climb 358 welded mesh
Extremely strong to block all illegal visit of persons and vehicles.
- Wire diameter: 4.0 mm (8 Gauge)
- Mesh opening: 76.2 mm × 12.7 mm (3" × 0.5")
- Panel size: 3 m (9'10") H × 2.12 m (7') L
- Side Panel
Support panel for whole structure, which can stabilize the defensive barrier.
- Wire diameter: 4.0 mm (8 Gauge)
- Panel shape: right angle trapezoid
- Panel size: 3 m (9'10") H × 1.2 m (4') W
- Defensive Barrier
Foundation of system, which can be filled with sands, soils or stones.
- Wire diameter: 4.0 mm (8 Gauge)
- Mesh opening: 76.2 mm × 76.2 mm (3" × 3")
- Dimension: 2.12 m (7')L × 1.2 m (4') W × 0.9 m (3') with 2 cells.
- Spiral Wires & Pins
Connect the neighbor panels, make collapse easy and enhance the stability of system.
- 6 × 3 meter spiral wires and 3 × 3 meter pins – connect side panels and anti-climbing 358 welded mesh panels
- 6 × 0.9 meter spiral wires and 3 × 0.9 meter pins – connect side panels and back panels
- All spiral coil wires are pre-assembled and 1 piece of 3 meter pins and 3 pieces of 0.96 meter pins need to assembled at site.
- Extra one 3 meter pins and one 0.9 meter pins are supplied for neighbour cells connection.
- U Channel
Prevent sharp edge of side panel from hurting labors
Each side panel is equipped with 1 U-channel and 7 sets of bolts and nuts, total 3 U-channels and 21 sets of bolts and nuts.
- Geotextile
Pre-assembled to enhance its structural integrity and prevent the loss of fill material.
Advantages & Benefits
- Extremely strong. The combination of anti-climbing 358 welded mesh and defensive barrier can block all illegal enters of both persons and vehicles.
- Ground mounted. It need not foundation or any site preparations. You can install it on the ground directly.
- Rapid deployment. It can be deployment within a moment. Just pull up and structure the structure and connect and stabilize them with connection pins, all works are completed. It need not special tools.
- Flexible. Defensive barrier and geotextile structure make the filling and empty materials easy and fast. It gives you flexibility to decide where and when to deploy the defensive barrier pro system.
- Safe. The sharp edge of trapezoid side panel are covered with steel U channels to protect the labor safe.
Applications
Defensive barrier pro is an excellent crowd control security barrier, it provides a short term solution to stadia, event security and police requirements.
Furthermore, it is capable of safeguarding oil and gas facilities, essential infrastructure, and both urban and remote areas against the risks of explosions, ballistic attacks, and vehicular threats.
